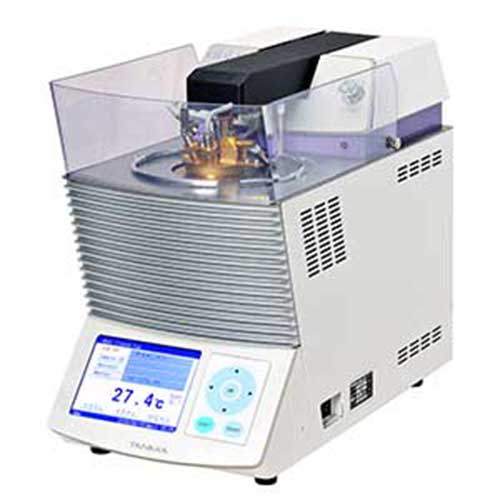

Automated Abel Closed Cup Flash Point Tester

– Test Methods: ISO 13736, IP 170, ISO 1516, ISO 1523
– Measuring Range: +10 to +110⁰ for abl-8a
– 30 to +110 for abl-8l (with an optional chiller)
– Temperature Sensor: PT-100 in stainless steel sheath
– Flash Detector: CRC thermocouple
– Ignition Source: Gas flame or electric coil
– I/O Port: RC-232C and USB, 1 each
– Size: (W x D x H) 230 x 470 x 390 mm
– Weight: 19 kg
– Power Consumption: AC 100 to 240 V300 VA (max)50 / 60Hz
