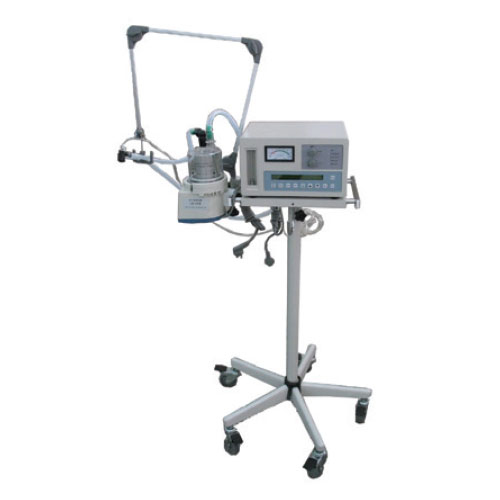

NICU Ventilator
- Working Mode (Ventilation Mode) Controlled Mechanical Ventilation (CMV), Intermittent Mandatory Ventilation (IMV), Continuous Positive Airway Pressure (CPAP), Manual Ventilation (Manual).
- Breath Rate 1~120BPM
- Inspiratory to Expiratory Ratio 1:1~1:3
- Special Order I:E Range 10:1~1:9.9
- Inspiratory Flow 3 L/min~20 L/min
- Tidal Volume Minimum 10 mL~300 mL
- Minute Volume Max. Ventilation volume greater than 5 L/min
- Oxygen Concentration of Output Gas 21%~100%
- Ventilator System Compliance Not greater than 3×10-2 mL/Pa
- Positive End-Expiratory Pressure (PEEP) 0kPa~2.0kPa
- Inhalation Safety Valve Safety valve shall be opened when the airway pressure is within -300 Pa ~ -800 Pa
- Inspiratory Pressure 1kPa~9kPa
- Inspiratory Time 0.2s~3.0s
- Synchronous Trigger Pressure Trigger.
- 1.0~0kPa (Special Order) Flow Trigger.
- 0~10L (Special Order) Maximum Safe Pressure.
- Not greater than 10kPa Continuous Positive Airway Pressure (CPAP).
